top quality hot sell powder coating line

Place of Origin : Guangdong, China

Brand Name : ABD

Packaging Details : curing oven package: load in container or according to customer's needs

Supply Ability : 5 sets per month

Price : Negotiate

Certification : CE

Substrate : Steel

Condition : New

Marketing Type : New Product 2022

Warranty of core components : 1 Year

Core Components : PLC, Motor

Coating : Powder Coating

Voltage : 220v380v or as customers local voltage

Power : multi power

Dimension(L*W*H) : according to your needs

Key Selling Points : Easy to Operate

Showroom Location : Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Spain, Thailand, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka,

Weight (KG) : 5000

Heating system : gas/electric/LPG/Diesel etc

Wall panel : Rock wool steel board,150 mm thick,anti-flame and heat-insulation

Control system : process setting system:could set baking temperature etc

Car powder curing furnace : metal doors powder heating machine

Contact Now

top quality hot sell curing oven

Product Description

Inside Size(mm)	8000x1500x2500mm (LXWXH)
Outside size(mm)	8300x1800x3200mm (LXWXH)
Wall panel	Rock wool steel board,150 mm thick,
Wall panel	anti-flame and heat-insulation
Fan	1 set 4 kw high-temperatute fan,air flow capacity:7000m³/h
Fan	Fan and burner box inner is 1.2 mm thick stainless steel,out is also 150mm thick rock wool panel to keep heat
Air curtain fan	2 sets of 1.5kw centrifugal fan for keeping heat inner the oven
Heating system	1set of Riello FS20 natural gas burner,200000KCal/h
Heating system	max temp:250 ℃, heating time: 20-25 min (180-250℃)
Control system	Temperature alarm(With inductor in the oven) ,stop button,process setting system:could set baking time and temperature,when baking time arrive,stop automaticly
Total power	7kw

Powder coating oven

Powder coating oven with track rail:

Powder coating oven with hanging rail:

top quality hot sell powder coating line

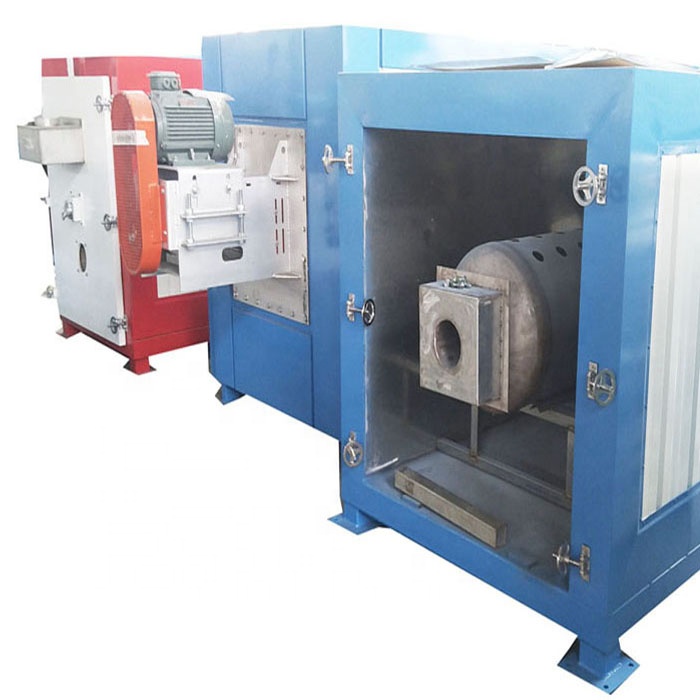

Powder coating oven components:

top quality hot sell powder coating line

Company Information

Foshan ABD Equipment Co., Ltd. is a professional environmental quipment manufacture,the company products varied coating quipments like powder coating machine, powder coating booth, powder coating oven,powder reciprocator,powder coating production line,cyclone recovery systerm,hot air drying oven, drying boxes and drying tunnel,hanging conveyor,automatic spray pre-treatment etc.

top quality hot sell powder coating line

Engineers are available for oversea service !!

Why choose us?

1.With more than 10-year experience for painting machine,

2.Export more than 100 places around world, Australia,Africa,Ansia,America,Europe etc.

3.Best post-sell service, offer oversea service for you to install for use.

curing machine oven
